Schematic design of the Alexandra Bridge replacement
Schematic design for the "Motion" concept bridge that will replace the Alexandra Bridge spanning the Ottawa River from Ottawa, Ontario to Gatineau, Quebec.
Published:
Image 0 of 23
Schematic design of the Alexandra Bridge replacement Aerial view of the concept design of the Alexandra Bridge replacement overlooking the Ottawa River with Gatineau and the Canadian Museum of History seen in the distance. (NCC)
Schematic design of the Alexandra Bridge replacement Design rendering of the view looking towards Ottawa from the pedestrian walkway of the Alexandra Bridge replacement. (NCC)
Schematic design of the Alexandra Bridge replacement Design concept of the Alexandra Bridge replacement. The National Art Gallery and Kìwekì Point and can be seen on the shoreline. (NCC)
Schematic design of the Alexandra Bridge replacement The bridge spans the Ottawa River connecting Ottawa to Gatineau. (NCC)
Schematic design of the Alexandra Bridge replacement The concept is called “Motion,” which is inspired by the American eel and features three arches. one primary arch and two secondary arches. (NCC)

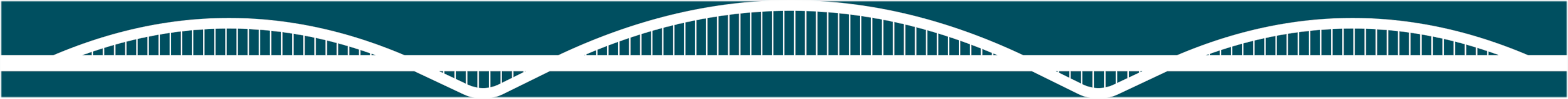

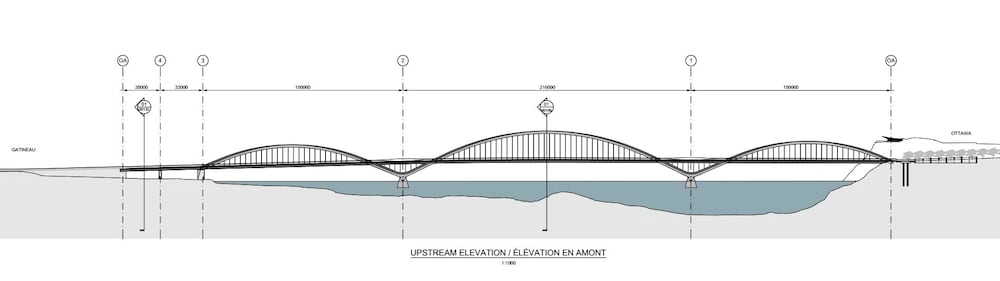

Schematic design of the Alexandra Bridge replacement Schematic design of the upstream elevation of the Alexandra Bridge replacement. (NCC)
Schematic design of the Alexandra Bridge replacement Schematic design of the Alexandra Bridge replacement. (NCC)

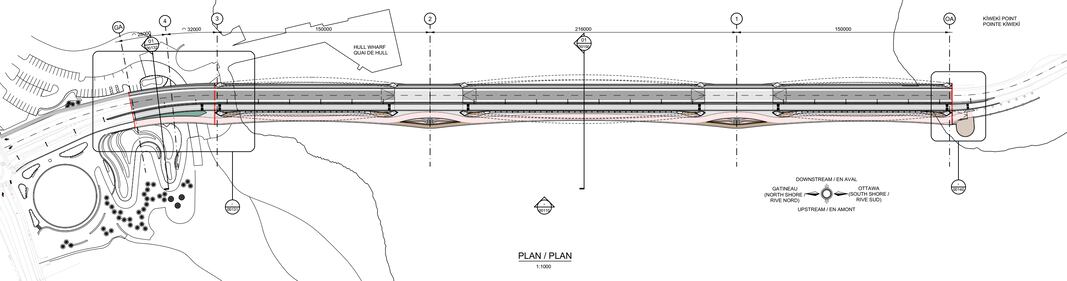

Schematic design of the Alexandra Bridge replacement Schematic design of the Alexandra Bridge replacement as seen from above. (NCC)

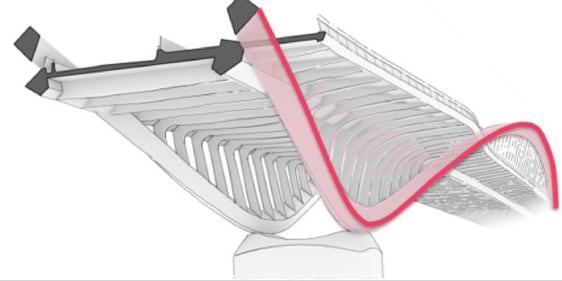

Schematic design of the Alexandra Bridge replacement Schematic design detail of the “Motion” concept which was inspired by the American eel. (NCC)
Schematic design of the Alexandra Bridge replacement A closer look at the design of the Alexandra Bridge replacement. (NCC)
Schematic design of the Alexandra Bridge replacement The colour palette of the Alexandra Bridge replacement. (NCC)
Schematic design of the Alexandra Bridge replacement Concept design of the Alexandra Bridge replacement in winter. (NCC)
Schematic design of the Alexandra Bridge replacement A diagram of the area surrounding the abutment of the bridge on the Quebec side. (NCC)
Schematic design of the Alexandra Bridge replacement Design concept of the lighting along the pathways leading to the bridge on the Gatineau side. (NCC)
Schematic design of the Alexandra Bridge replacement A proposed Temporary Marine Infrastructure is depicted in this diagram. (NCC)
Schematic design of the Alexandra Bridge replacement The bridge’s form is defined by three undulating arches that reference the river’s moving water, the contours of the shoreline and escarpment, and the curved facade of the Canadian Museum of History. (NCC)
Schematic design of the Alexandra Bridge replacement The pathways along the shorelines connect users to Confederation Boulevard. (NCC)
Schematic design of the Alexandra Bridge replacement The bridge features lookout spaces offering uninterrupted views of the river and the central capital scene. (NCC)
Schematic design of the Alexandra Bridge replacement The railing is designed to be strong and secure, helping those who might find crossing bridges intimidating, while transparency is provided to allow all users to enjoy views. (NCC)
Schematic design of the Alexandra Bridge replacement A design rendering of the area surrounding the abutment of the bridge on the Quebec side. (NCC)
Schematic design of the Alexandra Bridge replacement The bridge’s form is defined by three undulating arches that reference the river’s moving water, the contours of the shoreline and escarpment, and the curved facade of the Canadian Museum of History. (NCC)
Schematic design of the Alexandra Bridge replacement Nighttime design rendering of the Alexandra Bridge replacement. (NCC)
Schematic design of the Alexandra Bridge replacement The pathways along the shoreline on the Quebec side of the bridge. (NCC)
